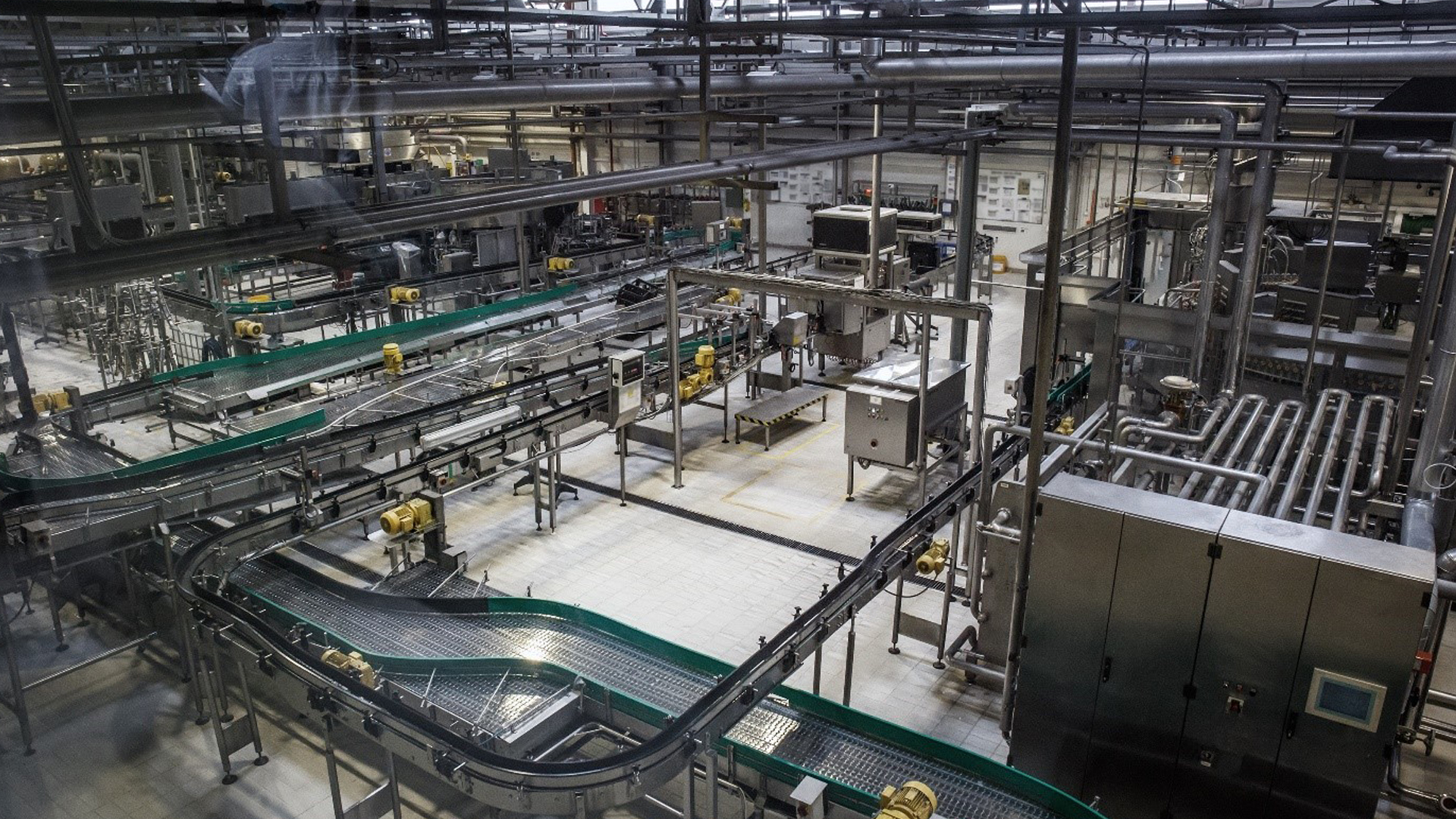

3D scan plays vital role to triple capacity for brewery in Haiti

The challenge

Our client took over the brewery shortly after the 2010 earthquake in Haiti, the project included rebuilding and upgrading damaged buildings as well as building new facilities for increasing the capacity. The key challenge for Haskoning was how to enable such a large increase in production on what was a small, complex site. Only a few detailed plans from the original works for the 35-year old operations were available.

The solution

A 3D scan provides information required for 3D model

A 3D scan and topographic survey of key areas of the brewery and pipework were undertaken to provide our experts in the Netherlands with the detailed information they needed. It was one of the first times 3D scans had been applied on such a large scale.  

“It provided the basis for our 3D model and, with the work complete, our client now has a detailed ‘as-built’ model for future work. It has already been used to design a new wastewater treatment plant and all pipework connected.”

The result

3D modelling ensures smooth execution of design

 3D modelling is essential for smooth execution of complex designs. The accuracy of 3D models allows for preemptive issue resolution, leading to significant cost and time savings. This was particularly useful for the project at hand, characterised by a compact site and very complex pipe systems.

3D scans enhance this process by providing detailed insights into the physical space, To ensure continuation of production during the construction work and a safe working environment, close coordination with all parties proved to be key in the project.
