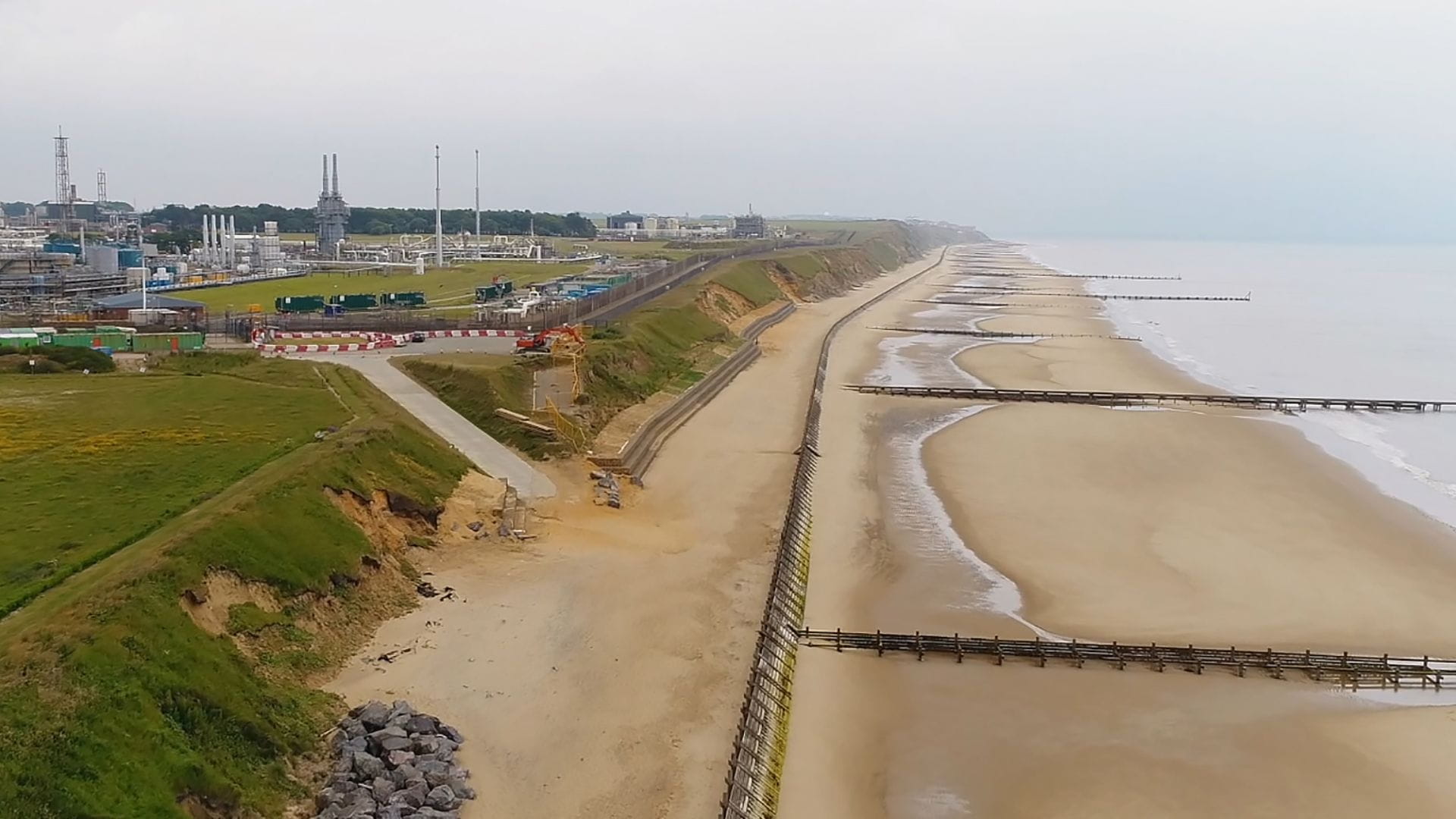

A UK first - sandscaping: building with nature in Bacton, Norfolk

This is a particularly pressing problem along the east coast of England where Haskoning has been tasked with designing coastal protection for the nationally important Bacton Gas Terminal. Taking inspiration from the Dutch, a sandscaping solution has been designed. It will be the first such project in the UK and outside of the Netherlands.

This sustainable solution uses the power of the sea to naturally shift large quantities of sand down a coastline providing flood and coastal protection to critical infrastructure and also to neighbouring communities - thus building with nature.

The importance of Bacton

After a storm surge in December 2013, the land between the Bacton Gas terminal and the sea was eroded by 10 metres, leaving just 15 metres between it and the sea. Haskoning was approached by the terminal operators, Shell and Perenco, to find an urgent solution to protect the terminal against coastal erosion.

In addition, the severity of coastal erosion in the area means that some 200 homes in the villages of Bacton and Walcott are at risk of being lost within just five to ten years. The Shoreline Management Plan for the area had concluded that no solution could be found to protect their homes for the long term.

Dutch inspiration

Implementing the first sand engine project outside the Netherlands, will not only protect the terminal from cliff erosion in a 1 in 10,000 per year storm, but has the added benefit of protecting the villages of Bacton and Walcott. It could lead to similar approaches being implemented elsewhere along the UK coastline in the future.

Jaap explains: “As the project developed, we recognised that if we can design to avoid making things worse for neighbouring communities, we should be able to design to make things better. Once we settled on the use of sand, we could factor in enough material (around 1.5 million cubic metres of sand in total) to help restore the neighbouring village beaches that over time have suffered from serious erosion which has eaten away the buffer in front of the seawall. The solution will provide several hundred people in the community extra decades of protection from the sea, therefore buying them time to adapt to the inevitable coastal erosion.”

At the end of its lifetime the sand can be replenished and maintained as required – keeping costs low and the process sustainable.

Collaborative approach

As a result of these additional benefits to the local community, the scheme – which could cost up to £20M – has now evolved into a public-private partnership between the Bacton terminal operators together with North Norfolk District Council.

Gökhan Doygun – Commercial Advisor at Shell responsible for collaboration between the Bacton Terminal Operators, Haskoning and other parties – commented: “The Bacton Gas Terminal is an important energy asset for the UK. To protect the Terminal and the associated pipelines, we need a solution which will be sustainable and will allow us to continue operating into the future. Due to its green nature, Sandscaping creates a great opportunity for the Bacton Terminal and the neighbouring villages to collaborate.”

All parties have now agreed on a preferred design – with work planned to begin during summer 2018 following full consultation and consent processes. Eyes will be on the project as we have already worked with The Crown Estate to identify other areas around the UK that could benefit from a similar scheme, changing the face of coastal protection for years to come.
